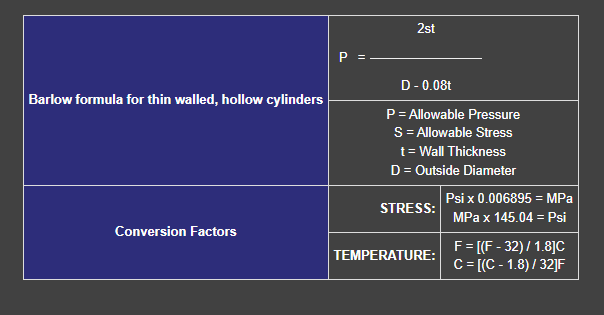

The allowable internal pressure for any copper tube in service is based on the Barlow formula for thin-walled, hollow cylinders used in the ASME B31 Code, for Pressure Piping.

The value of S is the allowable design strength for continuous long-term service of the tube, as determined by the ASME Boiler and Pressure Vessel Code, Section 1 – Materials.

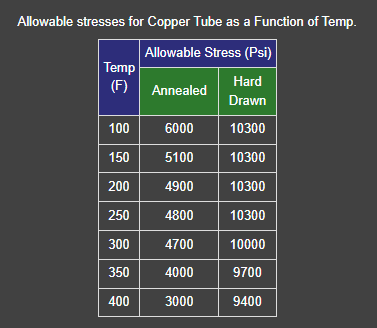

Allowable stresses for annealed and drawn temper copper tube are shown in the table below. They are only a small fraction of copper s ultimate tensile or burst strength. In system design, joint ratings must also be considered, as the lower of the two ratings (tube or joint) will govern the installation. The rated joint strength in soldered tube systems often governs design. However, annealed ratings must be used in brazed systems since the brazing operation may anneal the tube near the joints.
